SubliAT1804 4 Head High Speed Sublimation Printer
Original price was: ₹810000.₹790000Current price is: ₹790000.
The SubliAT1804 4 Head High Speed Sublimation Printer is a wide-format printing machine equipped with four Epson i3200-A1 printheads, 1800mm printing width and print speeds of up to 97m²/h. Designed for high-volume sublimation and commercial printing production.
| Model | SubliAT1804 |
| Printhead | 4 × Epson i3200-A1 |
| Printing Width | 1800mm |
| Maximum Print Speed | Up to 97m²/h |
| Production Mode | Up to 77.6m²/h |
| Quality Mode | Up to 53.8m²/h |
| Ink Colour | CMYK – Four Colours |
| Ink Capacity | 3000ml Per Colour |
| Ink Supply | Negative Pressure Continuous Ink Supply |
| Heating System | Three-Stage Front, Middle & Rear Heating |
| Drying System | Dual Infrared Heating with External Drying Fan |
| RIP Software | Maintop / PhotoPRINT / Wasatch |
| Computer System | Windows 11 / Windows 10 |
4 Head High Speed Sublimation Printer for Industrial Production
The SubliAT1804 4 Head High Speed Sublimation Printer is designed for high-volume digital printing and wide-format production requirements. Equipped with four Epson i3200-A1 printheads, the machine combines high-speed output, an 1800mm printing width and automated printer functions for continuous commercial production.
With a maximum listed printing speed of up to 97m²/h in sketch mode, the SubliAT1804 is suitable for printing businesses handling sublimation transfer paper, photo paper, PP paper, canvas, rice paper, vehicle vinyl, heat transfer paper and other compatible printing media.
The printer features automatic cleaning, anti-clogging, flash spraying and automatic moisturizing functions to support printhead maintenance during regular production workflows.
Epson i3200-A1 4 Printhead Configuration
The SubliAT1804 uses four Epson i3200-A1 printheads. The 4-head configuration is designed for printing businesses that require faster production output across wide-format media.
A printhead height range of 2–3mm is specified for the machine. Manual printhead height adjustment allows the distance between the head plate and compatible media to be adjusted according to the production requirement.
High Speed Wide Format Printing Performance
The 4 Head High Speed Sublimation Printer provides three listed production speed modes for different printing requirements.
| Printhead | Sketch Mode | Production Mode | Quality Mode |
|---|---|---|---|
| Epson i3200-A1 | Up to 97m²/h | Up to 77.6m²/h | Up to 53.8m²/h |
Businesses can select a printing mode according to production speed and output requirements. Actual production performance may vary depending on media, ink, RIP settings, artwork and operating conditions.
1800mm Wide Format Printing Width
With an 1800mm printing width, the SubliAT1804 is suitable for wide-format digital printing applications. The printer can be used for compatible transfer paper, signage media, photo media, canvas and other supported roll materials.
The wide printing area is useful for commercial print shops, sublimation printing units and production businesses processing larger print jobs or continuous roll-to-roll media.
Automatic Cleaning and Anti-Clogging Functions
The printer includes fully automatic cleaning with anti-clogging, flash spraying and automatic moisturizing functions. These integrated maintenance functions are designed to support regular printhead care and continuous production workflows.
Correct printer maintenance, ink selection and operating conditions remain important for printhead performance and machine operation.
Negative Pressure Continuous Ink Supply System
The SubliAT1804 uses a negative pressure continuous ink supply system. The listed ink cartridge capacity is 3000ml per colour, supporting CMYK four-colour printing.
- CMYK four-colour configuration
- 3000ml ink capacity per colour
- Negative pressure continuous ink supply
- Low ink alarm configuration
- Three-litre ink bottle system
The printer supports listed Eco-Solvent, Water-Based and Sublimation Inks according to the compatible printing configuration and intended application.
Three-Stage Constant Temperature Heating System
The machine features a three-stage embedded constant temperature heating system with front, middle and rear heating control. The heating sections can be managed through a smart control board.
Controlled media heating supports the printing and drying workflow when processing compatible printing materials.

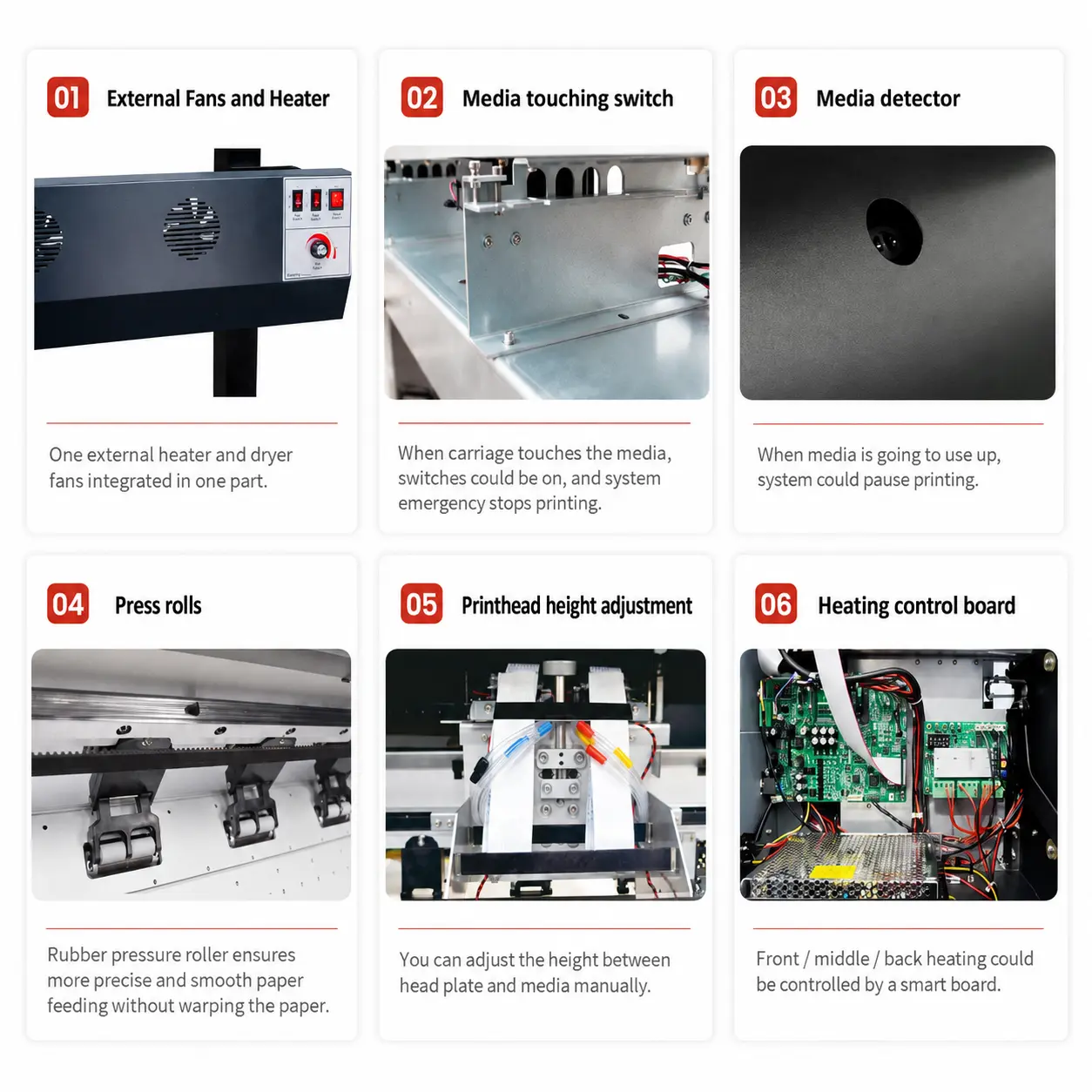

Dual Infrared Heating and External Drying Fan
The SubliAT1804 includes dual infrared heating with an external drying fan. The external heater and dryer fan configuration supports media drying during high-speed production.
This drying configuration is particularly useful for continuous roll printing workflows where printed media moves through the machine during production.
Automatic Media Detection
The integrated media detector identifies media conditions during printing. According to the machine configuration, the system can pause printing when the media is going to run out.
Automatic media detection helps operators manage continuous printing jobs and reduces the need for constant manual observation of the media roll.
Printhead Protection System
The SubliAT1804 includes a printhead protection configuration designed to support safer printer operation. The media detection and carriage-related protection features help manage printing conditions around the printhead area.
Correct media loading, head height adjustment and regular machine maintenance are recommended before starting production.
THK Silent Guide Rails
The machine is configured with THK silent guide rails for carriage movement. The guide rail system supports smooth carriage travel during wide-format printing operations.
12-Button Operation Panel
A 12-button operation panel provides access to printer operating controls. The printer uses English as its listed operation language and is designed for use with compatible Windows computer systems.
Media Touching Switch
The media touching switch is designed to detect contact between the carriage and media. According to the machine configuration, the switches can activate and the system can perform an emergency printing stop when the carriage touches the media.
Pressure Roll System
Rubber pressure rollers are used to support accurate and smooth paper feeding. The pressure roll system helps guide compatible media through the printing path during production.
Manual Printhead Height Adjustment
The height between the head plate and media can be adjusted manually. This allows operators to configure the printhead position according to compatible media and machine requirements.
Applications of the SubliAT1804 Printer
The SubliAT1804 is suitable for a wide range of digital and wide-format printing applications. Depending on the selected ink and media configuration, applications may include:
- Sublimation Transfer Paper Printing
- Heat Transfer Paper Printing
- Photo Paper Printing
- PP Paper Printing
- Canvas Printing
- Rice Paper Printing
- Vehicle Vinyl Printing
- Wall Décor Printing
- Custom Art Printing
- Display Graphics
- Advertising Graphics
- Promotional Printing
- Wide Format Roll Printing
- Commercial Digital Printing
Compatible Printing Media
According to the listed machine specifications, supported media applications include:
- Photo Paper
- PP Paper
- Canvas
- Rice Paper
- Vehicle Vinyl
- Heat Transfer Paper
- Sublimation Transfer Paper
- Other Compatible Printing Media
RIP Software Compatibility
The SubliAT1804 supports the following listed RIP software options:
- Maintop
- PhotoPRINT
- Wasatch
RIP software availability and configuration should be confirmed according to the selected printer setup and production workflow.
Computer and Printing Interface
- Windows 11 compatible
- Windows 10 compatible
- USB printing interface
- English operation language
SubliAT1804 Technical Specifications
| Specification | Details |
|---|---|
| Model | SubliAT1804 |
| Printhead Type | Epson i3200-A1 |
| Printhead Number | 4 Printheads |
| Printhead Height | 2–3mm |
| Maximum Listed Print Speed | Up to 97m²/h |
| Production Mode Speed | Up to 77.6m²/h |
| Quality Mode Speed | Up to 53.8m²/h |
| Printing Width | 1800mm |
| Ink Type | Eco-Solvent / Water-Based / Sublimation Inks |
| Ink Colour | CMYK – Four Colours |
| Ink Capacity | 3000ml Per Colour |
| Ink Supply | Negative Pressure Continuous Ink Supply |
| Cleaning | Automatic Cleaning, Anti-Clogging, Flash Spraying & Automatic Moisturizing |
| Maximum Roll Weight | Less Than 80kg |
| Heating System | Three-Stage Embedded Constant Temperature Heating – Front, Middle & Rear |
| External Drying | Dual Infrared Heating with External Drying Fan |
| Operation Language | English |
| Computer System | Windows 11 / Windows 10 |
| Printing Interface | USB |
| RIP Software | Maintop / PhotoPRINT / Wasatch |
| Power Parameters | AC 220V, 50Hz / 60Hz |
| Standby Power | 72W |
| Maximum Power | 5500W |
| Noise Level | Standby <32dB, Operating <65dB |
| Working Temperature | 18°C–25°C |
| Working Humidity | 35%–65% RH |
| Machine Weight | 335kg |
Who Should Buy the SubliAT1804?
The SubliAT1804 is designed for printing businesses requiring high-speed, wide-format production. It is suitable for sublimation printing units, textile transfer printing businesses, digital print shops, signage businesses, commercial printing companies and production facilities handling continuous roll printing.
Its four Epson i3200-A1 printheads, 1800mm printing width and high-speed production modes make it suitable for businesses looking to increase printing capacity and manage larger production requirements.
Frequently Asked Questions
What is the SubliAT1804?
The SubliAT1804 is a 4-head high-speed wide-format printer equipped with four Epson i3200-A1 printheads and an 1800mm printing width.
What is the maximum printing speed of the SubliAT1804?
The listed printing speed is up to 97m²/h in sketch mode, up to 77.6m²/h in production mode and up to 53.8m²/h in quality mode.
How many printheads does this printer use?
The printer uses four Epson i3200-A1 printheads.
What is the printing width?
The SubliAT1804 has a listed printing width of 1800mm.
Can this printer be used for sublimation printing?
Yes. Sublimation ink is included in the listed compatible ink types. The machine can be configured for compatible sublimation printing workflows and transfer paper production.
Which colours does the printer use?
The listed ink colour configuration is CMYK: Cyan, Magenta, Yellow and Black.
What is the ink capacity?
The listed ink capacity is 3000ml per colour with a negative pressure continuous ink supply system.
Which RIP software is compatible with the printer?
The listed RIP software options include Maintop, PhotoPRINT and Wasatch.
Does the printer have automatic cleaning?
Yes. The listed cleaning system includes automatic cleaning, anti-clogging, flash spraying and automatic moisturizing functions.
Is this printer suitable for high-volume production?
The four-printhead configuration, 1800mm printing width and listed speed of up to 97m²/h make the machine suitable for businesses handling high-volume wide-format printing requirements.
Buy SubliAT1804 4 Head High Speed Sublimation Printer from ApparelTech
ApparelTech supplies printing machines, sublimation printers, DTF printers, DTG printers, UV printers, heat press machines and printing raw materials for professional printing businesses.
The SubliAT1804 is designed for businesses looking for an industrial high-speed printer with four Epson i3200-A1 printheads, wide-format printing capability and automated production features.
