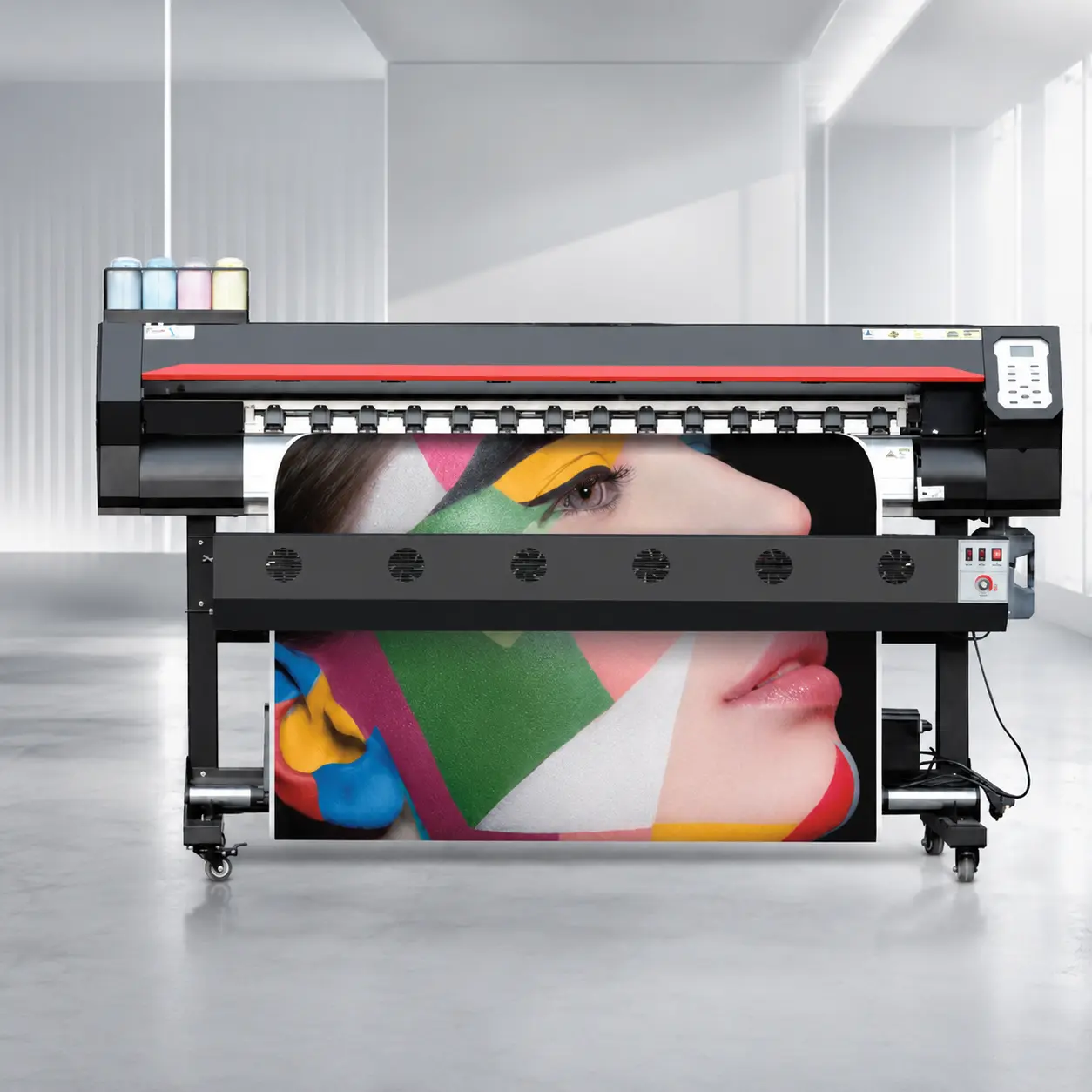

SubliAT1902 i3200 Dual Head Wide Format Sublimation Printer

SubliAT1902 i3200 Sublimation Printer for High-Speed Wide Format Printing

The SubliAT1902 i3200 Sublimation Printer is a dual-head wide-format printing machine designed for high-volume sublimation transfer and compatible commercial roll printing applications. Equipped with two Epson i3200 printheads, the machine combines high-speed printing, variable ink drop technology, automatic cleaning and a three-stage heating system.

With a listed print effective width of 1600mm/1850mm and print speeds of up to 49m²/h, the SubliAT1902 is suitable for sublimation printing businesses, textile transfer units, custom apparel manufacturers and commercial printing operations requiring faster roll production.

Dual Epson i3200 Printheads for High-Speed Sublimation Printing

The SubliAT1902 uses two Epson i3200 printheads for wide-format production. Its dual-head configuration is designed to support faster printing while maintaining detailed graphics, colour transitions and compatible transfer printing output.

The listed printhead height range is 2mm to 3mm. A manual nozzle height adjustment system allows the operator to manage the distance between the printhead plate and compatible media according to production requirements.

i3200 Sublimation Printer with Up to 49m²/h Print Speed

The SubliAT1902 offers multiple printing modes for different production requirements. Businesses can select a suitable mode based on printing speed and output quality requirements.

Actual printing speed may vary depending on artwork, media, ink, RIP settings, pass configuration and operating conditions.

Variable Ink Drop Technology for Detailed Printing

The printer uses variable ink drop technology to control different ink droplet sizes during printing. Three variable droplet sizes support colour compensation, detailed graphics and smooth image output.

Ink droplet volume can range from 1.5pl to 5pl according to the supplied machine information. Smaller droplets support fine image details, while variable droplet control helps manage different areas of the printed artwork.

Greyscale Printing for Smooth Colour Gradients

Greyscale level printing technology is designed to support smooth gradient effects, detailed lines and complex image areas. This is particularly useful for photographs, graphics and artwork containing multiple colour transitions.

The combination of variable ink drop control and greyscale printing supports detailed image reproduction for compatible commercial printing applications.

1850mm Wide Format Sublimation Printing

The SubliAT1902 supports a listed print effective width of 1600mm/1850mm. Its wide-format configuration is suitable for compatible roll media and commercial printing production.

When correctly configured with compatible water-based sublimation ink and transfer paper, the machine can be used in textile transfer and custom apparel printing workflows.

Fully Automatic Printhead Cleaning System

The printer includes a fully automatic cleaning system for regular printhead maintenance. It also features an anti-blocking flash spray and automatic moisturizing function.

These systems are designed to support printhead moisture management and regular printer operation. Correct ink selection, machine cleaning and scheduled maintenance remain important for long-term printing performance.

CMYK Continuous Ink Supply System

The SubliAT1902 uses a four-colour CMYK ink configuration consisting of Cyan, Magenta, Yellow and Black. A negative pressure continuous ink supply system supports ink delivery during commercial printing production.

• Four-colour CMYK printing
• 1500ml ink capacity per colour
• Negative pressure continuous ink supply
• Designed for roll printing production
• Compatible with supported water-based sublimation ink

Three-Stage Heating Synchronous Control System

The SubliAT1902 features a front, middle and back three-stage embedded synchronous heating control system. Each heating section supports the media at a different stage of the printing process.

Back Heating Before Printing

The back heating section preheats compatible media before it reaches the primary printing area.

Middle Heating During Printing

The middle heating platform heats the media during printing to support suitable ink behaviour and production stability.

Front Heating After Printing

The front heating section supports the drying process as the printed media moves through the output area.

Infrared Heating External Drying System

An infrared heating external drying fan supports compatible printed media during continuous roll production. The external drying configuration works with the printer’s heating system to manage media during the printing workflow.

This system is useful for commercial production where continuous printing and roll media management are required.

Anti-Collision Device for Printhead Protection

The printer carriage includes anti-collision devices on both sides. The system is designed to detect suitable obstruction conditions during printing.

If an obstruction is detected, the machine can support an emergency stop to help protect the printhead and carriage area from possible contact with the media.

Automatic Paper Detection System

The SubliAT1902 includes an automatic paper detection device. The system is designed to detect media conditions during the printing workflow.

According to the supplied machine configuration, the printing system can stop when a media-related condition is detected, supporting more controlled roll printing production.

Servo Motor for Stable Printer Operation

A servo motor system supports mechanical movement during machine operation. Stable movement of the printing system is important for wide-format roll printing and continuous commercial production.

Manual Nozzle Height Adjustment

The printer includes a manual height adjustment device for managing the distance between the printhead plate and compatible media. The listed printhead height range is 2mm to 3mm.

Operators should select the correct height according to media thickness, printer setup and production requirements.

Compatible Ink Types

According to the supplied technical specifications, the SubliAT1902 supports compatible:

• Eco-Solvent Ink
• Water-Based Ink
• Water-Based Sublimation Ink

For sublimation transfer production, the printer should be correctly configured with compatible sublimation ink and suitable transfer paper. Different ink systems should not be mixed without the required technical conversion and printer cleaning procedure.

Compatible Printing Media

The printer supports multiple media types according to the selected ink system and machine configuration.

• Photo Paper
• Adhesive Media
• Canvas
• Rice Paper
• Car Sticker Media
• Heat Transfer Paper
• Compatible Sublimation Transfer Paper
• Other Supported Roll Printing Materials

The listed maximum loadable roll weight is below 40kg.

Applications of the SubliAT1902 Wide Format Printer

The SubliAT1902 is suitable for compatible commercial sublimation and wide-format digital printing applications, including:

• Sublimation Transfer Paper Printing
• Textile Transfer Printing
• Custom T-Shirt Printing Workflows
• Custom Apparel Production
• Sportswear Transfer Printing
• Fashion Textile Transfer Production
• Heat Transfer Paper Printing
• Photo Paper Printing
• Canvas Graphics
• Commercial Roll Printing
• Wide Format Digital Printing
• High-Volume Printing Production

Standard Paper Take-Up Device

A standard paper take-up device supports continuous roll printing. The take-up system collects printed media and helps manage longer production jobs during wide-format printing.

Network Printing and RIP Software Support

The SubliAT1902 uses a 100M network port printing interface. The RIP software options listed in the supplied technical information include:

• Maintop
• PhotoPRINT
• Neostampa

Software availability and configuration should be confirmed according to the selected machine setup and printing workflow.

SubliAT1902 Technical Specifications

Computer Configuration Requirements

The supplied computer configuration recommendations for the SubliAT1902 include:

• Windows 7 32-bit or 64-bit operating system
• Intel Core i3 processor or above
• 4GB memory or above
• At least 120GB fast hard disk
• 7200 RPM hard disk configuration
• 17-inch flat-panel display
• True-colour graphics support
• Display resolution above 1024 × 768

Who Should Buy the SubliAT1902?

The SubliAT1902 is suitable for sublimation printing businesses, custom apparel manufacturers, textile transfer printing units and commercial wide-format printing businesses requiring higher production speed.

Businesses looking for a dual Epson i3200 printhead machine with wide-format roll printing, continuous ink supply and automatic cleaning can consider this model for compatible production workflows.

Frequently Asked Questions About the i3200 Sublimation Printer

What is the SubliAT1902?

The SubliAT1902 is a dual-head wide-format sublimation and digital printing machine equipped with two Epson i3200 printheads.

Which printhead is used in the SubliAT1902?

The supplied technical specification lists Epson i3200 printheads.

How many printheads does the SubliAT1902 have?

The SubliAT1902 uses two printheads for high-speed commercial printing production.

What is the maximum printing speed of the SubliAT1902?

The listed maximum printing speed is up to 49m²/h in sketch mode. Production mode is listed at up to 27m²/h and quality mode at up to 21.4m²/h.

Can the SubliAT1902 print sublimation transfer paper?

Yes. When correctly configured with compatible water-based sublimation ink, the printer can be used for suitable sublimation transfer paper printing.

What is the printing width of the SubliAT1902?

The supplied specification sheet lists a print effective width of 1600mm/1850mm.

Does the printer have automatic cleaning?

Yes. The printer includes fully automatic cleaning, anti-blocking flash spray and automatic moisturizing functions.

What is the ink capacity?

The listed cartridge capacity is 1500ml per colour with a four-colour CMYK configuration.

Does the SubliAT1902 have a heating system?

Yes. The printer uses a front, middle and back three-stage embedded synchronous heating control system.

Which RIP software is listed for this printer?

The listed RIP software options include Maintop, PhotoPRINT and Neostampa.

Is the SubliAT1902 suitable for high-volume sublimation printing?

Yes. Its dual Epson i3200 printhead configuration, up to 49m²/h listed print speed, continuous ink supply and wide-format roll printing features make it suitable for compatible high-volume sublimation production.

Buy SubliAT1902 i3200 Sublimation Printer from ApparelTech

ApparelTech supplies sublimation printers, wide-format printing machines, sublimation inks, transfer papers and heat press machines for commercial printing businesses. The SubliAT1902 is designed for businesses looking for a dual-head Epson i3200 printer with high-speed printing, automatic cleaning and wide-format roll production capabilities.

For machine configuration, compatible sublimation ink, transfer paper and production requirements, contact ApparelTech before final printer setup.
